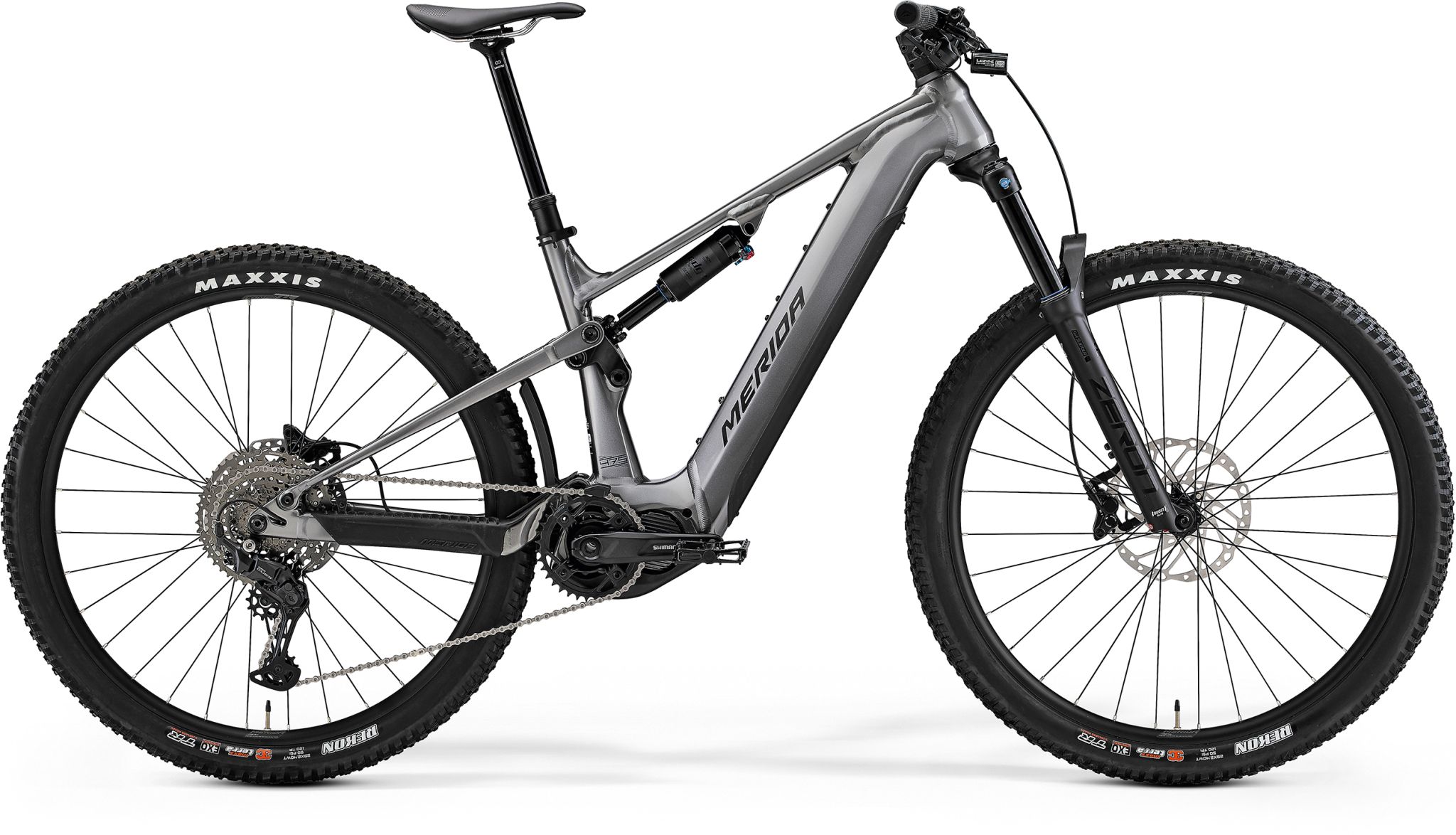

eONE FORTY 475 EQ
Tough enough for the mountains, versatile enough for the urban jungle. The ability to easily fit mudguards, racks, kickstands and lights, which come as standard on our fully-equipped EQ models, underlines the versatility of the new eONE-FORTY.
THE ULTIMATE MIX OF TRAILS AND MORE ROOM FOR LUGGAGE
The eONE FORTY 475 EQ can handle rough terrain. Whether it's the bumpy streets in the city, or the trails you cycle on the weekend. The powerful Shimano EP8 motor is combined with the beautifully concealed battery of no less than 750 Wh. Ready for serious distances. The mixed wheel sizes ensure more control and better handling. Combined with our trail geometry and smooth suspension, no obstacle is too crazy for you. Add to that the Shimano CUES groupset with the special 4-piston Shimano MT420 brakes, which ensure that you dive into that steep descent with confidence.
Are you looking for a performance eMTB that delivers on the trail but also offers versatility for less 'extreme' tasks such as commuting, shopping and general transport? The new eONE-FORTY delivers just that - everyday usability and finely tuned off-road capability.
VERSATILE FULL SUSPENSION E-BIKE
Aluminum frame with intube battery
Shimano EP8 motor (85 Nm)
Trendpower 750 Wh intube battery
Suntour ZERON 36 X fork (130 mm)
Shimano CUES 10-speed drivetrain
Shimano MT420 hydraulic disc brakes
Specifications eONE FORTY 475 EQ
133mm travel
27.5x2.8" max. wheelsize
148x12mm thru axle standard
150mm travel
Tapered
44mm fork off set
29x2.6" max. wheelsize
Shimano RT64 / Shimano RTEM600 203mm
XS,S 20mm rise
M,L,XL 30mm rise
35mm diameter
0° stem angle
Supernova mount
40 mm
0mm setback
travel dropper seatpost: XS 125mm - S 150mm - M/L 200mm - XL 230mm
FSA 1x Steel Chainring 36 teeth
10 speed
32 spoke
Centerlock
148x12 mm width rear hub
32 spoke
Centerlock
material: aluminium
Tubeless ready (tubeless tape and valves not included)
TR 3C EXO MaxxTerra
Features eONE FORTY 475 EQ
-
RACELITE 61 ALUMINIUM -
HFS - HYDRO FORMING SYSTEM -
X-TAPER HEADTUBE -
SMOOTH-WELDING -
INTERNAL CABLE ROUTING -
DI2 READY -
F-MOUNT -
K-MOUNT -
CASTED MOTOR BRACKET -
NON-SLIP TIGHTENING -
ENERGY GUARD TWIST -
INTERNAL BLOCK SYSTEM -
WIRE PORT -
FAST KINEMATIC -
LONG FENDER
Geometries eONE FORTY 475 EQ Gunmetal Grey
| Sizes | XShort | Short | Mid | Long | XLong) |
| Top Tube length -TT (mm) : | 543 | 564 | 585 | 607 | 628 |
| Seatpost Tube - ST (mm) : | 400 | 410 | 425 | 445 | 465 |
| Seat Stay - CS (mm) : | 449 | 449 | 449 | 449 | 449 |
| Head Tube Angle - HTA (°) : | 66.5 | 66.5 | 66.5 | 66.5 | 66.5 |
| Seatpost tube angle - STA (°) : | 79.7 | 79.7 | 79.7 | 79.7 | 79.7 |
| Bottom bracket drop - BD (mm) : | 35.5 | 35.5 | 35.5 | 35.5 | 35.5 |
| Head Tube length - HT (mm) : | 100 | 105 | 110 | 115 | 120 |
| Fork length - FO (mm) : | 557 | 557 | 557 | 557 | 557 |
| Reach - R (mm) : | 431 | 451 | 471 | 491 | 511 |
| Stack - S (mm) : | 616 | 620 | 624 | 628 | 633 |
| Wheelbase - WB (mm) : | 1191 | 1213 | 1235 | 1257 | 1280 |
| Stand over height - SH (mm) : | 758 | 752 | 746 | 744 | 739 |
Check delivery time and order your eFull-suspension
Buy online the eFull-suspension eONE FORTY 475 EQ Gunmetal Grey 2025 and have the bike delivered at a Merida dealer of your choice. . Choose from more than 600 dealers in the Benelux or Denmark..
